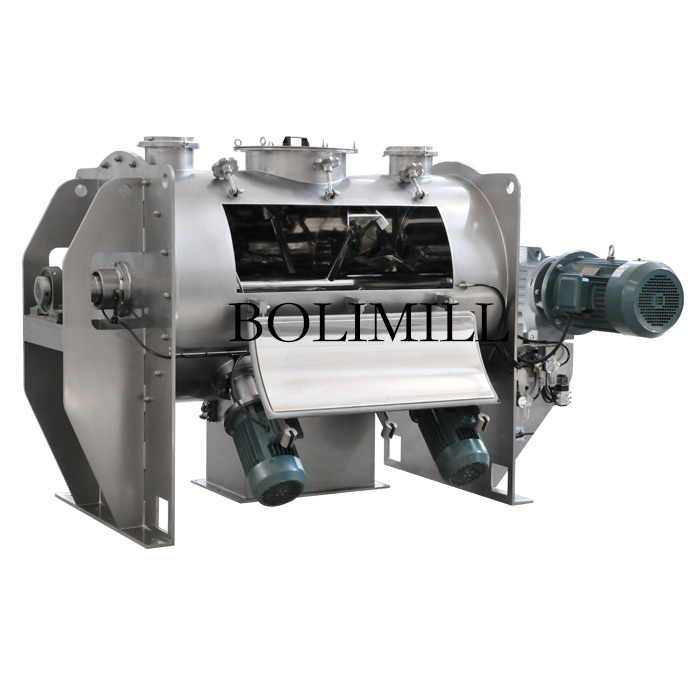

1000L Paddle Powder Mixing Machine 48-97 RPM SUS304

Name: 1000L Paddle Powder Mixing Machine 48-97 RPM SUS304
Brand: Jiangyin Baoli Machinery Manufacturing Co., Ltd.
Price: 2 USD
Availability: InStock

Brand Name:	BOLIMILL
MOQ:	1
Preis:	$2,000

Detail Information

Product Description

Detail Information

Herkunftsort:

Jiangsu, China

Zertifizierung:

ISO CE

Mischertyp:

Paddeln

Fassvolumen:

1000 L

Spindelgeschwindigkeit:

48 - 97 U / min

Gewicht:

1300 KG

Material:

SUS304, SUS304L, SUS316, SUS316L

Stromspannung:

220-660V

Leistung:

11 kW

Max Loading Volume:

650 L

Maximale Tragfähigkeit:

65%

Effiziente Kapazität:

100-10000 Liter

Antriebskraft:

3KW-55KW

Mischzeit:

3-15 Minuten

Material verarbeitet:

Kunststoffe, Chemikalien, Lebensmittel

Kernkomponenten:

Motor, Zahnrad, Druckbehälter, Getriebe, Pumpe, SPS, Lager, Motor

Entladungskontrolle:

Manuellem Selbstverschluss, pneumatisch angetrieben, elektrischer Angetrieben

Hervorheben:

1000L paddle powder mixer

SUS304 powder mixing machine

48-97 RPM mixing equipment

Product Description

Yeast Powder Mixer Machine - Plough Shear Blender for Seasoning & Ice Cream Powder

The plough shear mixer consists of a cylindrical drum containing plough-shaped mixing elements mounted on a horizontal shaft. The agitator's central shaft features welded/bolted arms with specialized plough-shaped mixing elements that give the machine its name. Optional high-speed choppers can be added to disperse agglomerations and control granulation during mixing.

Key Functions

The plough mixer creates continuous material flow through high-speed three-dimensional movement. Centrifugal vortex action ensures thorough mixing of dry powders, granules, small fibers, and low-viscosity liquids/pastes.

Discharge Control Options

Manual self-lock mechanism
Pneumatic driven system
Electric driven operation

Performance Specifications

Capacity range: 100-10,000 liters
Power: 3kW-55kW
Mixing time: 3-15 minutes
Interchangeable mixing agitators
Easy adjustment capabilities

Standard Features

Flange connection system
Quick-opening feeding inlet
Integrated exhaust port
Accessible cleaning doors

Technical Specifications

Packaging & Delivery

We provide professional, environmentally friendly packaging to ensure safe transportation of your equipment.

Manufacturer Profile

Jiangyin Baoli Machinery Manufacturing Co., Ltd. (established 2004) specializes in industrial mixing equipment with global distribution to Southeast Asia, Europe, America, Oceania, Middle East, and Africa markets.

Certifications

After-Sales Support

Frequently Asked Questions

Location: Wuxi City (30 minutes from Shanghai by train)

Alibaba Gold Supplier with 10+ years experience
15+ years manufacturing history
Certifications: CE, ISO, BV
Regular participation in international expos (FIC, CPHI, API)

Inquiry Checklist

For efficient quotation, please provide:

Material type and dryness level
Feed material particle size
Required capacity (kg/h)
Material density
Voltage requirements (380V 50Hz 3P standard)
Material contact surface preference (304 or 316 stainless steel)
